- Features
- Specs
misc
cubic feet storage | 758 |
---|---|
door opening wxh | 71.125" x 73.5" |
overall dimensions | 12' x 8' x 9' 5" |
peak height | 9' 5" |
sidewall height | 8' Front / 7' Back |
square feet storage | 96 |
weight | 2,300 |
roof
max roof load | 30lbs |
---|---|
max wind resistance | 115mph |
number of rafters | 10 |
overhang length front side | 23.125" / 12" |
rafter spacing | 16" oc |

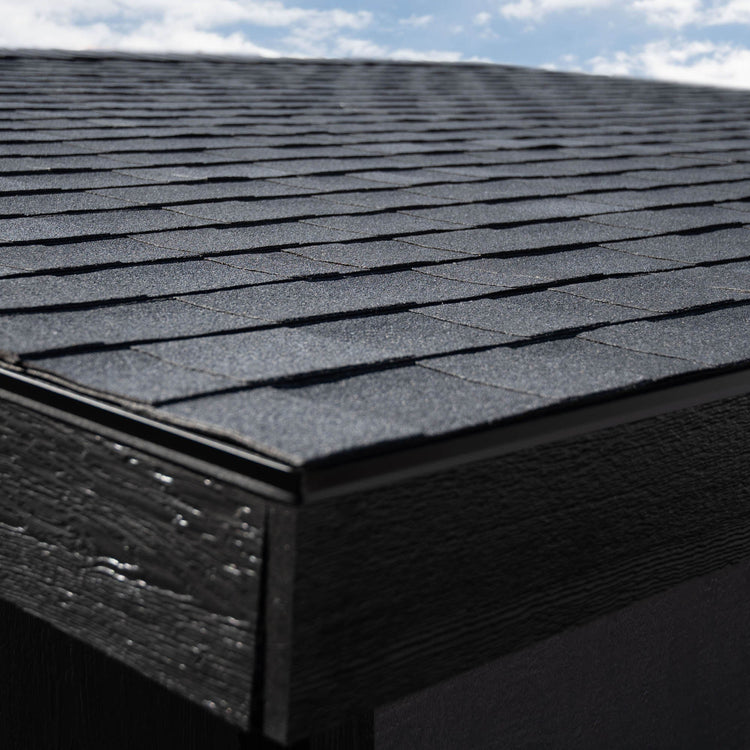

roof material | Shingles |
roof pitch | 2/12 |
warranty | 15-year limited |
floor
4x4 treated runners | Included |
---|---|
floor joist spacing | 12" oc |

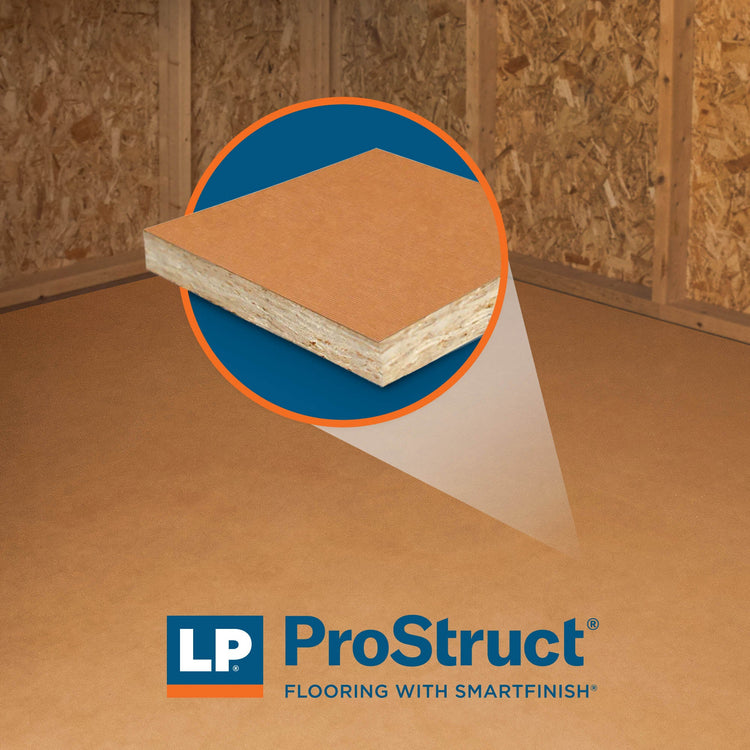

floor type | Prostruct |
floor weight capacity | 52lbs./sq ft |

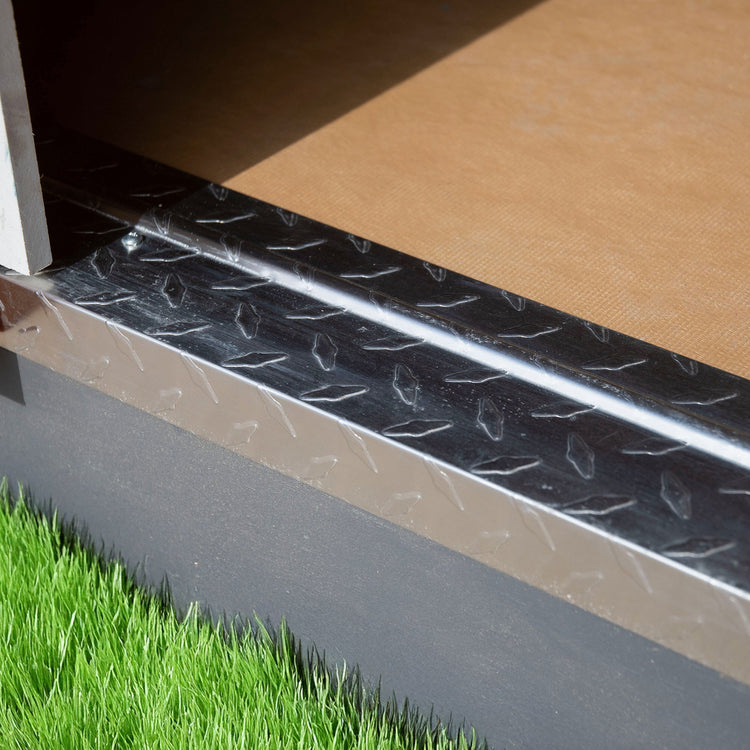

threshold | Diamond-plate |
wall
paint and caulk | Black L-handle |
---|---|
stud spacing | 16" oc2 Gal - Body, 2 Qt Door, 3 Qt - Trim, 3 - Caulk |
ventilation | Barn Vents |
wall framing | 2 x 4 |
door
door handle | Black L-handle |
---|---|
door hinges | Black Face-mount Hinges |
- Features
- Specs
misc
cubic feet storage | 931 |
---|---|
door opening wxh | 71.125" x 73.5" |
overall dimensions | 12' x 10' x 9' 5" |
peak height | 9' 5" |
sidewall height | 8' Front / 7' 9" Back |
square feet storage | 120 |
weight | 2,600 |
roof
max roof load | 30lbs |
---|---|
max wind resistance | 115mph |
number of rafters | 10 |
overhang length front side | 23.125" / 12" |
rafter spacing | 16" oc |
roof material | Shingles |
roof pitch | 2/12 |
warranty | 15-year limited |
floor
4x4 treated runners | Included |
---|---|
floor joist spacing | 12" oc |
floor type | Prostruct |
floor weight capacity | 52lbs./sq ft |
threshold | Diamond-plate |
wall
paint and caulk | 3 Gal - Body, 2 Qt Door, 3 Qt - Trim, 3 - Caulk |
---|---|
stud spacing | 16" oc |
ventilation | Barn Vents |
wall framing | 2 x 4 |
door
door handle | Black L-handle |
---|---|
door hinges | Black Face-mount Hinges |
- Features
- Specs
misc
cubic feet storage | 1,241 |
---|---|
door opening wxh | 71.125" x 73.5" |
overall dimensions | 16' x 10' x 9' 5" |
peak height | 9' 5" |
sidewall height | 8' Front / 7' 9" Back |
square feet storage | 160 |
weight | 3,000 |
roof
max roof load | 30lbs |
---|---|
max wind resistance | 115mph |
number of rafters | 13 |
overhang length front side | 23.125" / 12" |
rafter spacing | 16" oc |
roof material | Shingles |
roof pitch | 2/12 |
warranty | 15-year limited |
floor
4x4 treated runners | Included |
---|---|
floor joist spacing | 12" oc |
floor type | 12" oc |
floor weight capacity | 52lbs./sq ft |
threshold | Diamond-plate |
wall
paint and caulk | 3 Gal - Body, 2 Qt Door, 1 Gal - Trim, 4 - Caulk |
---|---|
stud spacing | 16" oc |
ventilation | Barn Vents |
wall framing | 2 x 4 |
door
door handle | Black L-handle |
---|---|
door hinges | Black Face-mount Hinges |
FAQ
Is painting included with my purchase?
Is caulking included with my purchase?
How soon do I need to caulk and paint my shed?
Is the shed sealed to prevent water from entering?
